DF PROCESSORS & RECEIVERS

RDF Products offers both self-contained radio direction finding receivers as well as DF bearing processors that are intended to be used with user-supplied host receivers.

/DF PROCESSORS & RECEIVERS
DF PROCESSORS & RECEIVERS 2017-11-05T21:46:26+00:00

DFR-2300B
DF PROCESSOR & RADIO

The DFR-2300B is a self-contained, compact, easy-to-operate wideband VHF/UHF radio direction finding receiver with a real-time polar TFT bearing display (essential for mobile tracking and homing radio direction finding missions). Comprises of DFP-1000B DF Processor & AR2300 “black-box” computer-operated surveillance-quality receiver. This is a full-featured high-performance DF system in a footprint small enough even for mobile applications.

DFR-2300B Product Data Sheet
DFR-2300B Wideband Radio Direction Finding Receiver

RDF Products DFR-2300B Wideband Radio Direction Finding Receiver

FEATURES

  • Compact, Self-Contained, Easy-To-Operate Unit

  • Ultra-Wide Frequency Coverage (25 MHz-3,150 MHz; subject to DF antenna frequency coverage)

  • Real-Time TFT Polar Bearing Display For Optimum Performance In Dynamic DF Environments

  • Specifically Designed For Radio Direction Finding In Motion

  • 3-1/2 Digit Numeric Bearing Display w/0.5 Degree Resolution

  • AM/FM/CW/SSB Demodulation Capability With Built-In Loudspeaker

  • Simultaneous Radio Direction Finding And Listen-Thru Capability

  • Selectable Bearing Integration Times

  • Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals

  • Bearing Track & Hold Feature

  • Dual-Mode Range Tone

  • Selectable 6/15/30/200 kHz IF Bandwidths

  • 10.7 MHz Or Custom IF Signal Interface With Host Receiver

  • Reads DF Antenna Model/Band Data From DF Antenna Personality Modules

  • GPS Receiver & Digital Compass Inputs

  • Real-Time RS-232 Remote Control Capability With Windows Software Thru one Com Port and one USB Port

DFR-8600D
DF PROCESSOR & RADIO

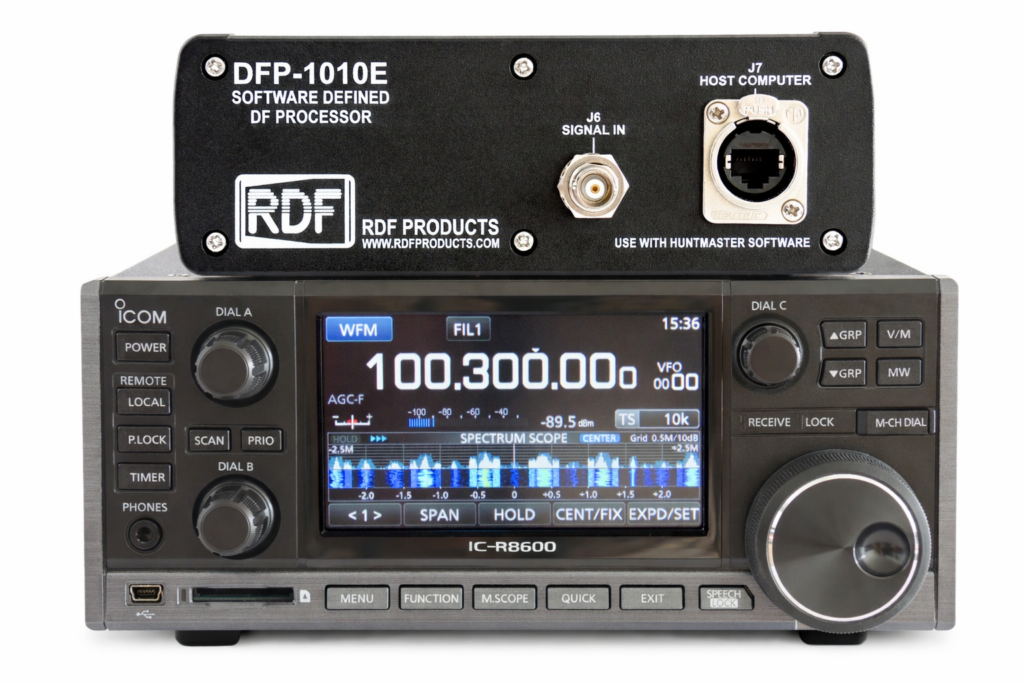

The DFR-8600D is a self-contained, compact, easy-to-operate wideband HF/VHF/UHF “radio direction finding engine” operated by a host computer via Ethernet TCP/IP data link. It’s Windows based HuntMASTER software provides real-time polar bearing display (essential for mobile tracking and homing radio direction finding missions). Comprises of DFP-1010D DF Processor & IC-R8600 surveillance-quality receiver. This is a full-featured high-performance DF system in a footprint small enough even for mobile, man-pack and airborne applications.

DFR-8600D Product Data Sheet
DFR-8600D Wideband Radio Direction Finding Receiver

RDF Products DFR-8600D Ethernet TCP/IP Radio Direction Finding Receiver Engine

FEATURES

  • Compact, Self-Contained, Easy-To-Operate Unit (requires Laptop/Tablet)

  • Ultra-Wide Frequency Coverage (9 kHz-3,000 MHz; subject to DF antenna frequency coverage)

  • Fast Bearing Output Rate For True Computer Emulation Of Real-Time Polar Bearing Display

  • Specifically Designed For Radio Direction Finding In Motion

  • Optional built-in HuntMaster license dongle

  • Simultaneous DF & Radio Listen-Through Capability

  • Selectable Bearing Integration Times

  • Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals

  • Bearing Track & Hold Feature

  • Selectable 6/15/30/200 kHz IF Bandwidths

  • 10.7 MHz Or Custom IF Signal Interface With Host Receiver

  • Reads DF Antenna Model/Band Data From DF Antenna Personality Modules

  • Ethernet control of DFP, Radio & GPS

  • Full Software Defined Radio (SDR) with Ethernet TCP/IP streaming to Windows HuntMASTER Software

DFP-1000B
DF PROCESSOR ONLY

The DFP-1000B is a DF processor/display unit that, in conjunction with an appropriate RDF Products DF antenna, economically adds radio direction finding capability to almost any receiver (via a 10.7 MHz or custom IF signal interface). This receiver can be one already owned by the customer, or one of the readily available high-quality low-cost consumer-market communications receivers. The DFP-1000B incorporates a real-time polar TFT bearing display (essential for mobile tracking and homing radio direction finding missions). The unit also features full RS-232 remote control capability.

DFP-1000B Product Data Sheet

RDF Products DFP-1000B Radio Direction Finding Bearing Processor/Display

FEATURES

  • Adds Radio Direction Finding Capability To Most Receivers

  • Real-Time TFT Polar Bearing Display For Optimum Performance In Dynamic DF Environments

  • Specifically Designed For Radio Direction Finding In Motion

  • 3-1/2 Digit Numeric Bearing Display w/0.5 Degree Resolution

  • AM/FM/CW/SSB Demodulation Capability With Built-In Loudspeaker

  • Simultaneous Radio Direction Finding And Listen-Thru Capability

  • Selectable Bearing Integration Times

  • Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals

  • Bearing Track & Hold Feature

  • Dual-Mode Range Tone

  • Selectable 6/15/30/200 kHz IF Bandwidths

  • 10.7 MHz Or Custom IF Signal Interface With Host Receiver

  • Reads DF Antenna Model/Band Data From DF Antenna Personality Modules

  • GPS Receiver & Digital Compass Inputs

  • Full RS-232 Remote Control Capability With Windows Software Thru Single Com Port

DFP-1010D
DF PROCESSOR ONLY

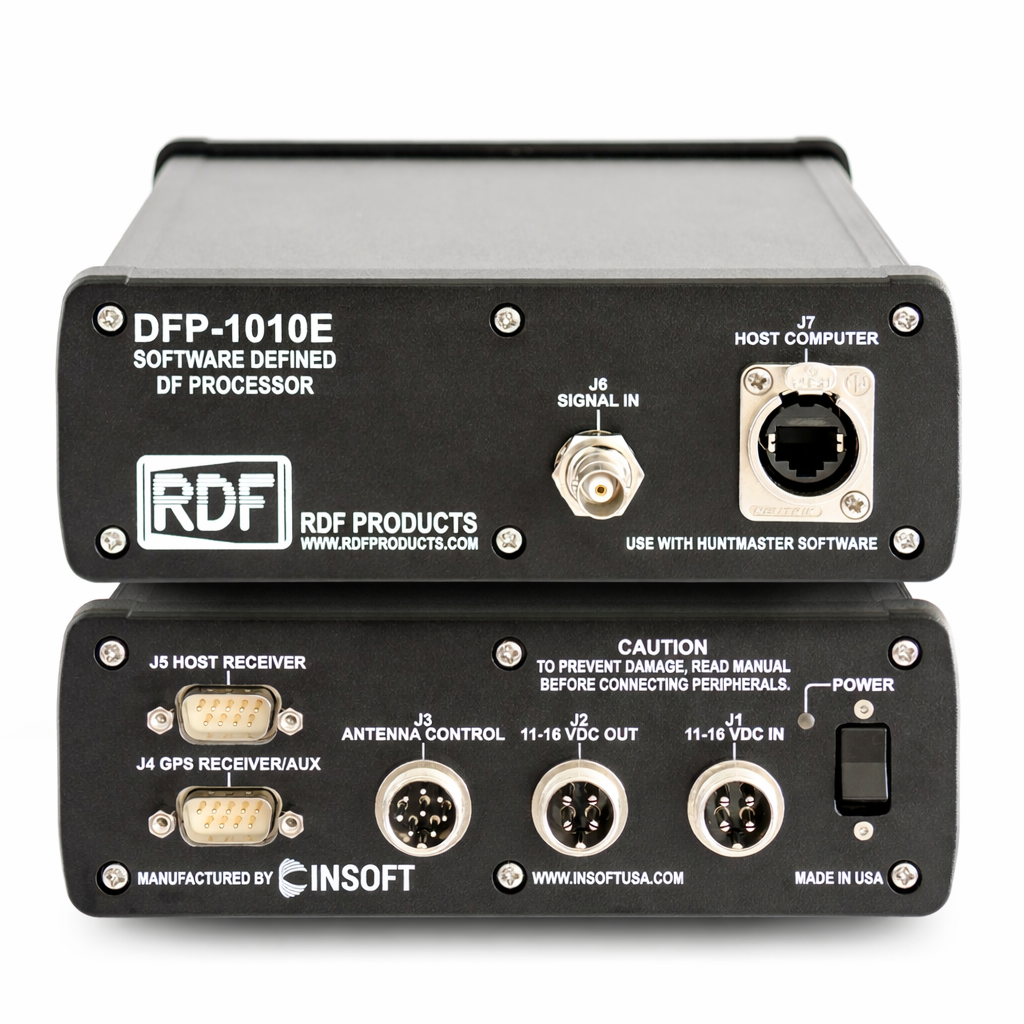

The DFP-1010D is a “radio direction finding engine” similar to the DFP-1000B but has no operating controls or indicators and is operated instead by a host computer via Ethernet TCP/IP data link.  Like the DFP-1000B, the DFP-1010D connects to the host receiver via a 10.7 MHz or custom IF signal interface.

DFP-1010D Product Data Sheet
DFP-1010D Software Defined DF Processor

RDF Products DFP-1010D Ethernet TCP/IP Radio Direction Finding Bearing Processor

FEATURES

  • Adds Radio Direction Finding Capability To Most Receivers

  • Fast Bearing Output Rate For True Computer Emulation Of Real-Time Polar Bearing Display

  • Specifically Designed For Radio Direction Finding In Motion

  • Optional built-in HuntMaster license dongle

  • Simultaneous DF & Radio Listen-Through Capability

  • Selectable Bearing Integration Times

  • Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals

  • Bearing Track & Hold Feature

  • Selectable 6/15/30/200 kHz IF Bandwidths

  • 10.7 MHz Or Custom IF Signal Interface With Host Receiver

  • Reads DF Antenna Model/Band Data From DF Antenna Personality Modules

  • Ethernet control of DFP, Radio & GPS

  • Full Software Defined Radio (SDR) with I/Q streaming to PC’s HuntMASTER Software
